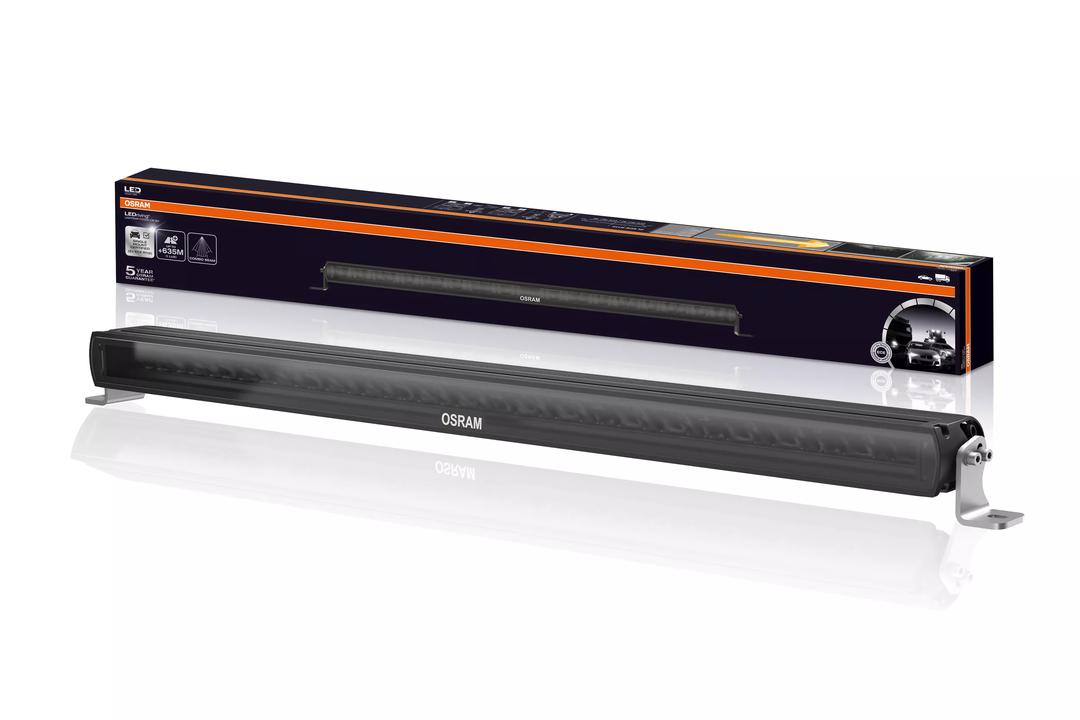

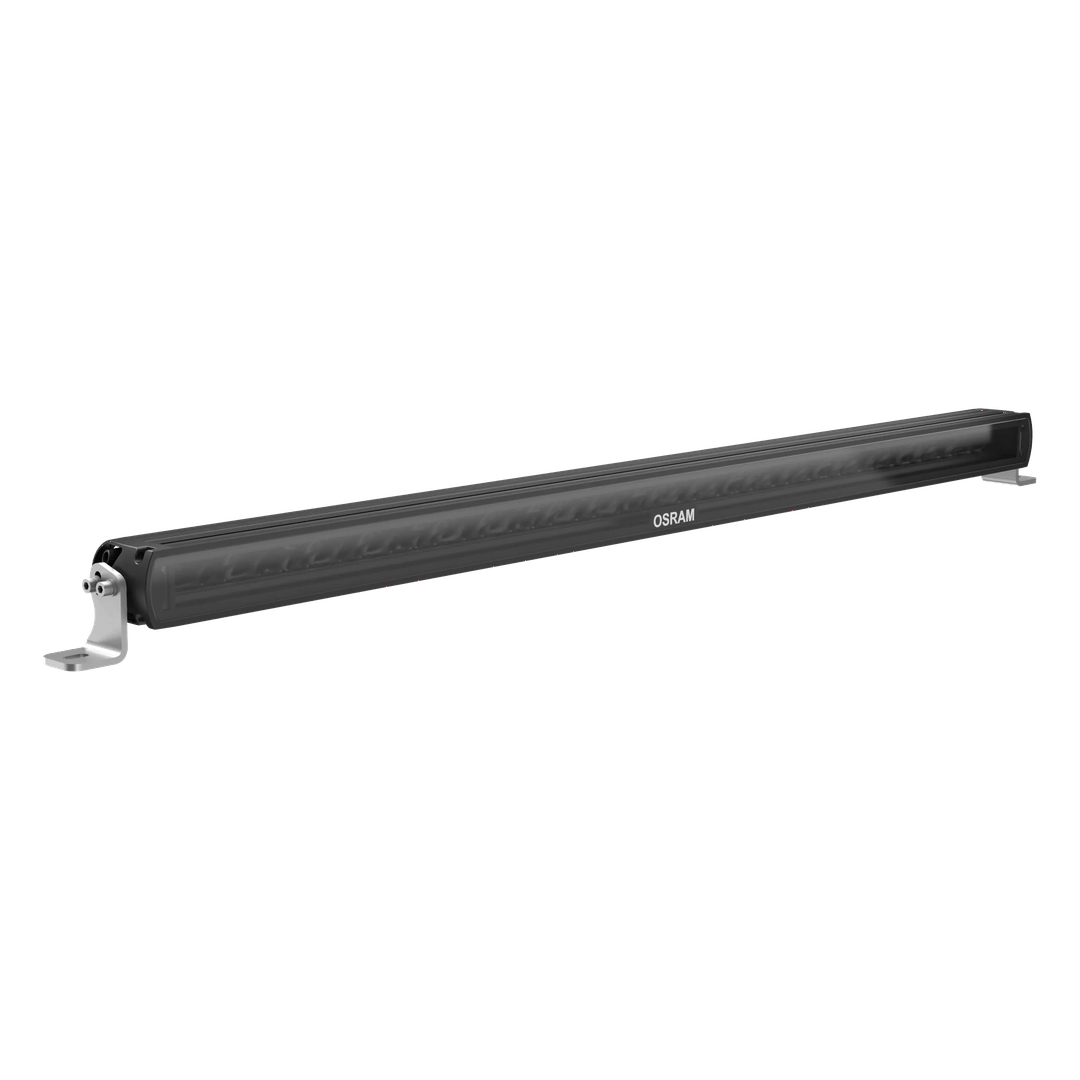

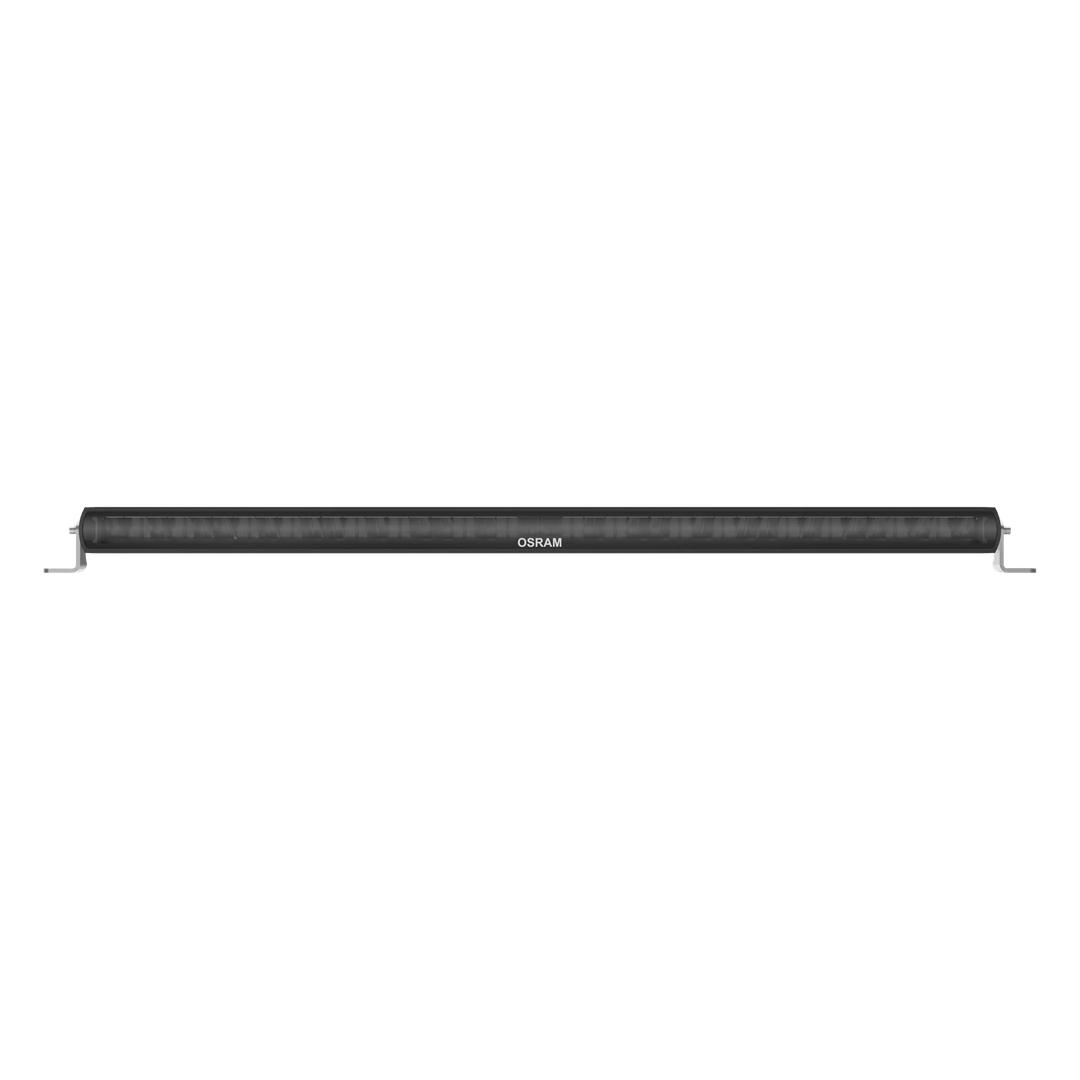

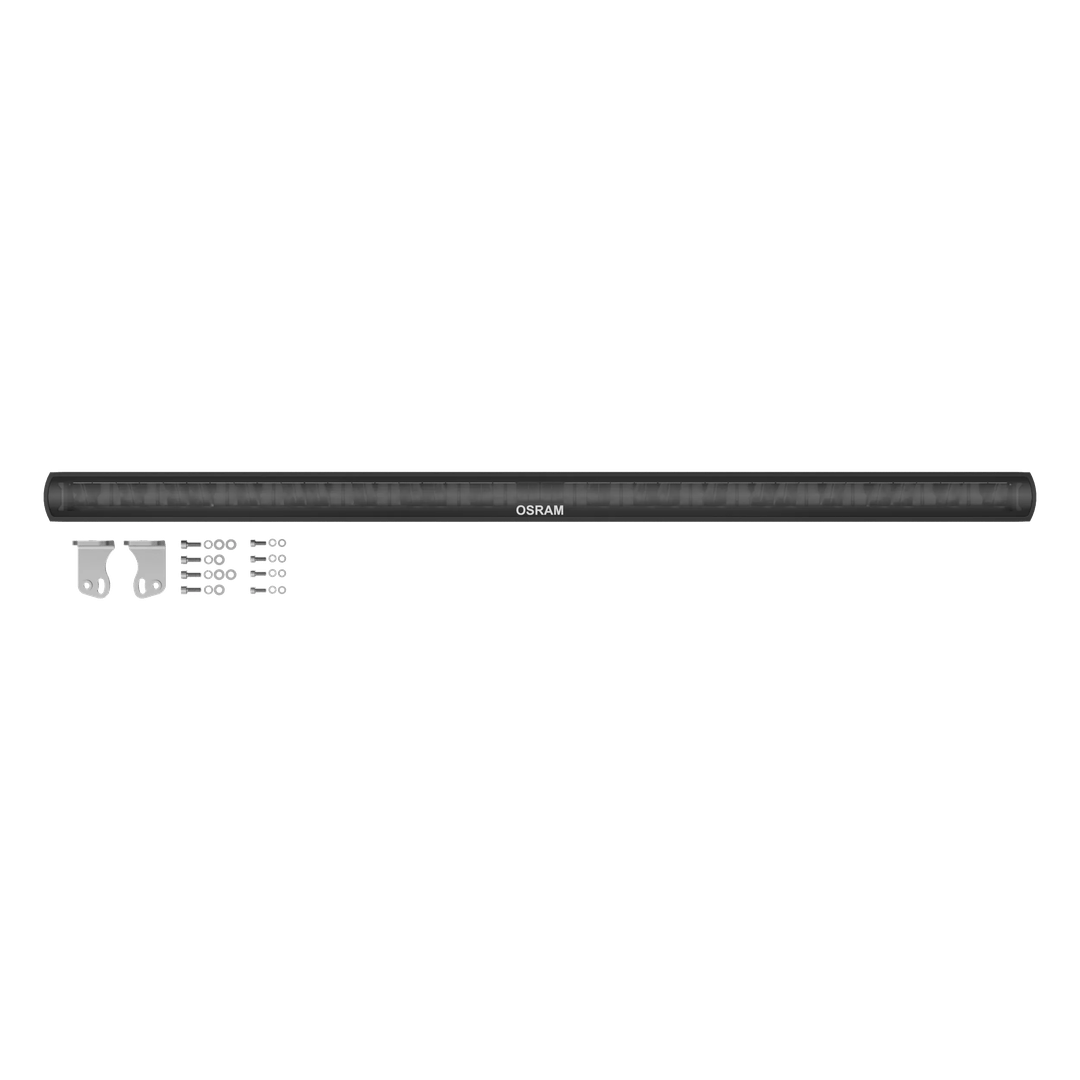

OSRAM Work light LED 12/24V 140W number of diodes 40pcs OSR LEDDL114-CB SM
Specification
Specification Tecdoc
OSRAM LEDriving
Significantly increased visibility on dark country roads, forest paths, off the beaten track, in the field, and on the road thanks to OSRAM LEDriving Lightbar FX1000-CB SM. 40 bright, high-quality LEDs provide a range of up to 635 meters and improve visibility both off-road and on public roads. Even in poor lighting conditions and limited visibility due to external conditions, OSRAM LEDriving Lightbar FX1000-CB SM lamps with a color temperature of up to 6,000K provide light comparable to daylight. With a luminous flux of 8000 lm, excellent optics, and homogeneous light distribution, LED road lamps provide better visibility on the road for the driver and other road users, which consequently increases safety on and off the road.
Whether used on the road or off-road, OSRAM LEDriving Lightbar FX1000-CB SM reversing lights impress with high light parameters and long durability of up to 5000h. They are resistant to many environmental factors, and thanks to the use of high-quality materials, such as a temperature-resistant housing with a strong polycarbonate lens, they are durable and strong. OSRAM LEDriving Lightbar FX1000-CB SM has been tested in our DIN-certified environmental simulation laboratory for resistance to extreme external factors (water, dust, high and low temperatures, and vibrations) and achieved an IP69K protection class. The integrated driver and heat dissipation system regulate the temperature of the LED lamps and prevent overheating. Reverse polarity protection secures the lamp in case of incorrect connection by automatically switching off the LED. OSRAM LEDriving Lightbar FX1000-CB SM is an impressive addition to vehicles both on and off the road. Additional registration is not required when installing these approved LED road lamps2).
ECE reference number: 50+50
OSRAM LEDriving Lightbar FX1000-CB SM can be mounted on passenger cars, trucks, agricultural machinery, commercial vehicles, construction vehicles, caravans, off-road vehicles, and quads2).
The OSRAM LEDriving Lightbar FX1000-CB SM road lamp has versatile applications and is flexible in use.
Technical data
Product designation LEDDL114-CB SM
Electrical data
Nominal voltage 12/24 V
Rated power 140.00 W
Test voltage (measured) 13.2 V
Photometric data
Luminous flux 8000 lm
Color temperature 6000 K
Luminous flux at 1 lx 635 m
Number of LEDs in module 40
Dimensions and weight
Product weight 4360.00 g
Length 1074 mm
Height 54 mm
Width 83.0 mm
Lifetime Tc > 5000 h
Lamp connector Open wire
Product note
Beam Pattern: Combo
LED technology
Certificates and Standards
Protection type IP6K8/IP6K9K
Research station marks E57 approval
Standards
ECE R10, 2 x R112
LEDriving road lamp from the Functional FX series
The LEDriving Lightbar FX1000-CB SM is a powerful additional road light that provides better visibility even in poor weather conditions thanks to 40 powerful diodes and 8,000 lumens. The high-quality design offers exceptional performance with uniform light distribution. The lamp has a light temperature of 6,000K. High-quality LEDs provide a range of up to 635 meters and improve visibility both off-road and on public roads. The lamp can be used both as an additional LED road light and a powerful work light. The lamps are ECE approved and therefore can be used on public roads².
Product information
Features
Advantages
- –Solid and durable construction – ensuring long lifespan
- –ECE approved (can be used on public roads)²
- –Integrated power supply and temperature management system
- –High-quality workmanship, durability up to 5,000 h
- –Carefully tested in extreme conditions
- –5-year warranty¹
¹Detailed information on the website: www.osram.pl/am-gwarancje
²OSRAM's LEDriving road lamps are approved according to ECE standards and therefore can be installed and used on public roads. Note: Special installation regulations apply. In addition to the product's ECE approval, individual special requirements and regulations applicable in specific countries must be observed.
