AKYGA EV charging cable 7,4kW Akyga 6m Typ 1 (SAE J1772) phases quantity 1 32A AK-EC-08

Index: AK-EC-08
Rate this product first
Color: Black/Blue
155.86 £

Specification

Series:
Akyga
Cable type:
straight
Phases quantity:
1
Plug type:
1 (SAE J1772)
Charger plug type:
2
Length [m]:
6
Rated power [kW]:
7.4
Wires cross-section [mm²]:
6,0
Maximum amperage [A]:
32
Colour:
Black
Colour:
Blue
Protection level:
IP44
Connector coating:
Cu-Ni
Bar code:
IC-G0UQHL, AV2120EC0815, AV2120EC0816, 5901720136800
Item code:
G0UQHL
Item index:
AK-EC-08
PCN:
85444290
Manufacturer:
AKYGA, Manufacturer: Akyga Europe Sp. z o.o. ,
ul. Wrocławska 1C,
52-200 Suchy Dwór,
Poland, [email protected].

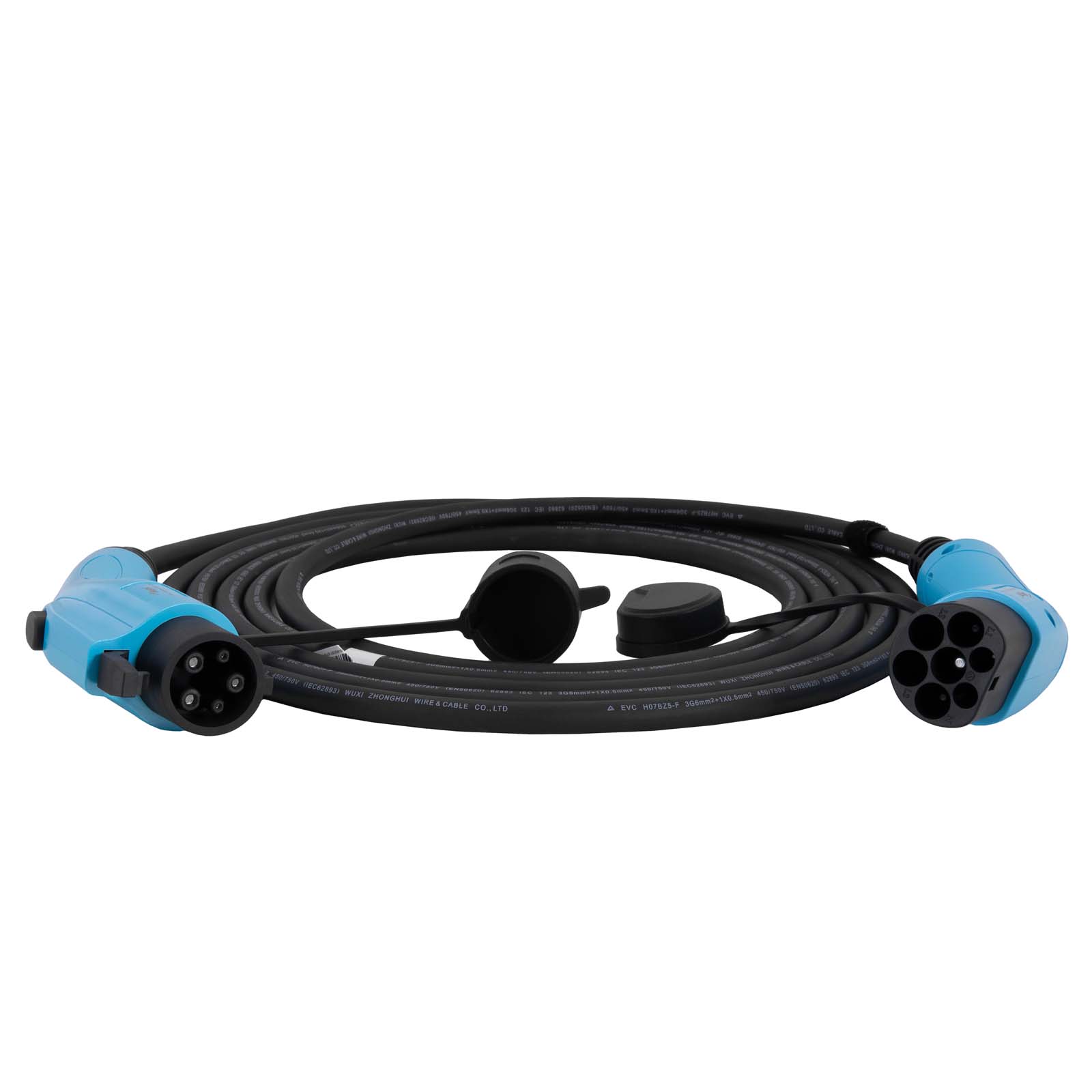

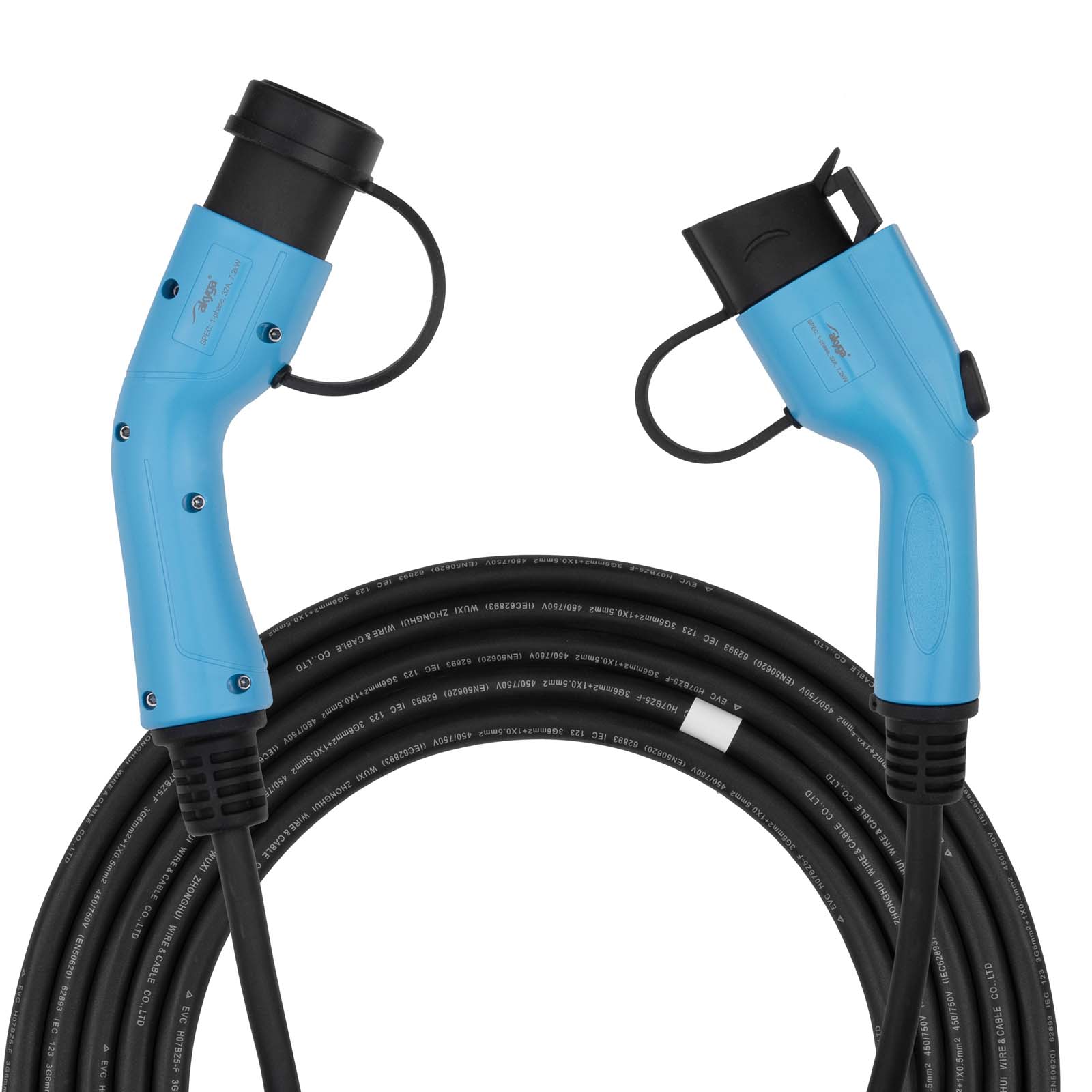

Akyga® AK-EC-08 cable is an irreplaceable accessory for anyone who owns a car imported from overseas. Currently, not every charging point has a suitable cable with a Type 1 connector, so it is worth equipping yourself to own one. The thick copper cable has two connectors. Type 1, found on American cars, and Type 2, available at charging stations across Europe. These connectors are characterised by solid workmanship and high-quality components. The robust construction guarantees not only a high resistance to falls, but also to accidental impact with a car wheel. What is more, the long 6 m cable will allow comfortable charging of the vehicle with current up to 32 A and maximum power of 7.2 kW.

Akyga® AK-EC-08 electric car charging cable will prove useful in charging the batteries of vehicles such as Nissan Leaf, Nissan NV200 SE VAN, Citroen C-Zero, Fisker Karma, Ford Focus Electric, Ford C-Max Energi, Peugeot iOn, Peugeot Galicia, Opel Ampera, Chevrolet Volt, Smiths Edison VAN, Smiths Newton, Tata Indica Vista EV, Toyota Prius, Mistubishi I-Miev, Mitsubishi Outlander PHEV, Mia Electric Van, Mia Electric Car, Kia Soul.

Charging cable for electric cars Type2 / Type1

  AK-EC-08 1-phase 32A 7.2kW 6m

  • Versatility – the cable is equipped with both Type1 and Type2 connectors, allowing you to charge your car at any station, regardless of the socket standard
  • Durability – thanks to the use of modern materials, the product is extremely durable and resistant to various types of damage
  • Convenience and reliability – the 6-meter cable end allows you to connect the vehicle even in hard-to-reach places

Product features

    Product code AK-EC-08
    Responsible entity Akyga Europe Sp. z o.o., 52-200 Suchy Dwór, Wrocławska 1c, Polska/Poland, [email protected]
    Product type Accessory for electric car
    Padlock eye No
    Supply voltage 110-250 V / 50/60 Hz
    Number of phases 1 phase
    Maximum current 32 A
    Maximum power 7.2 kW
    Fire resistance UL94V-0
    Ingress protection rating IP54
    Cable length 6 m

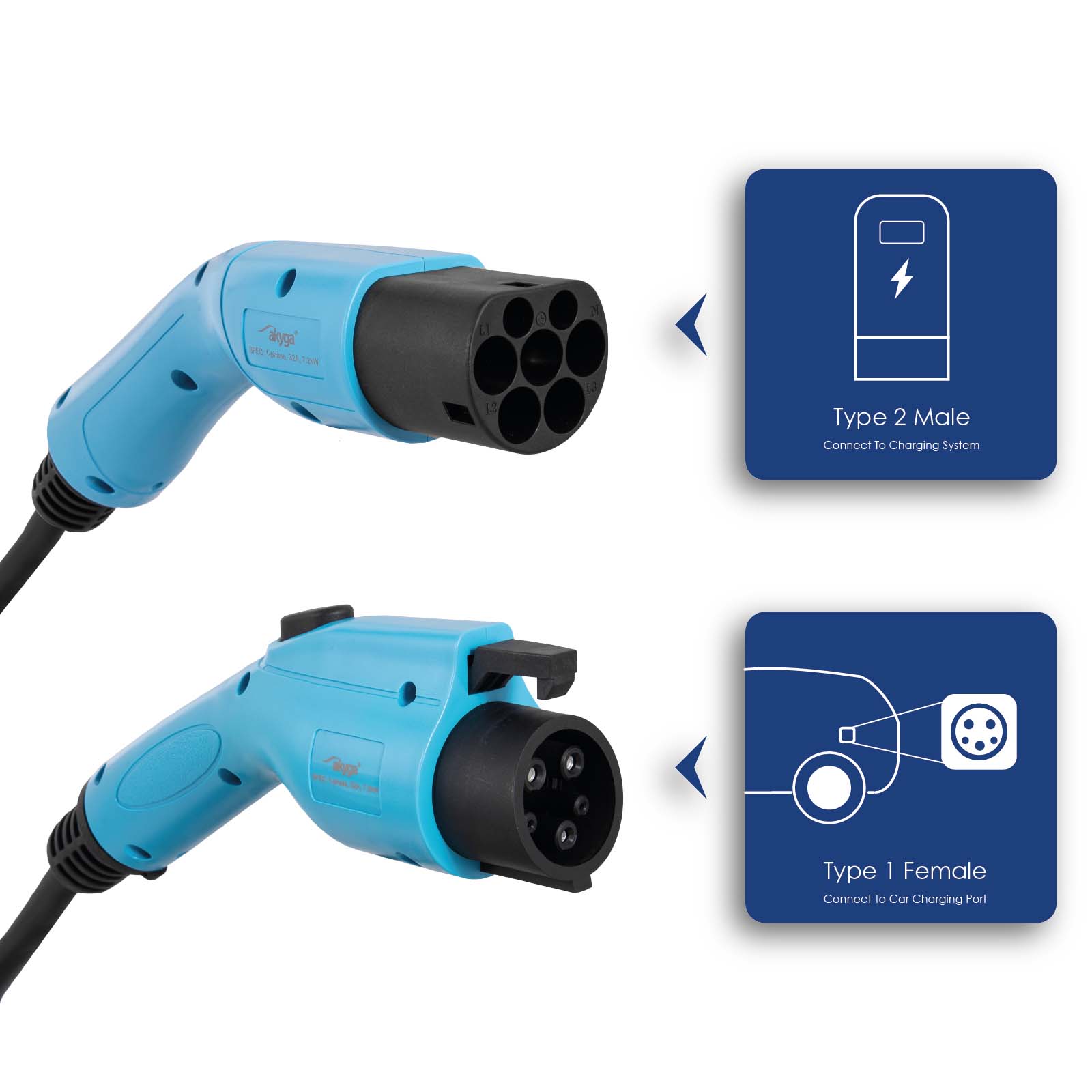

    Plug #1 Female connector Type 1 (J1772)
    Plug #2 Male connector Type 2 (IEC 62196-2)
    Cable material Copper
    Cable cross-section 3 x 6 mm2 + 1 x 0.5 mm2
    Insulation material TPE
    Material ABS
    Product color Black, blue
    Operating temperature -30 / +50 °C
    Packaging Protective bag
    Product dimensions (L x W x H) 6000 x 150 x 85 mm
    Packaging dimensions (L x W x H) 380 x 380 x 100 mm
    Net weight 3.06 kg
    Gross weight 3.4 kg
    CE compliance Yes
    FCC compliance Yes
    RoHS compliance Yes
    REACH compliance Yes
    Included equipment AK-AC-02
    EAN code 5901720136800
    Warranty 24 months
Cross references

Other codes

AK-EC-02 IC KROSY
CCABPSUOEM-08300 IC KROSY
EVP1CNS32121 IC KROSY
JAZ616118C IC KROSY
