AKYGA AC charger accessories, electric vehicle AK-SC-E08
Index:
AK-SC-E08
Rate this product first
>9
pcs.
Color: Black
95.89 £
Specification
Series:
Akyga
Kind:
power supply adaptor
Colour:
Black
Material:
Plastic
Rated power [kW]:
8
Phases quantity:
1
Maximum amperage [A]:
32
Connector coating:
Ag (silver)
Protection level:
IP55
Bar code:
IC-H05KXD, 5901720137821
Item code:
H05KXD
Item index:
AK-SC-E08
PCN:
87089997
Manufacturer:
Specification Tecdoc
Quantity per packaging [pcs]:
1

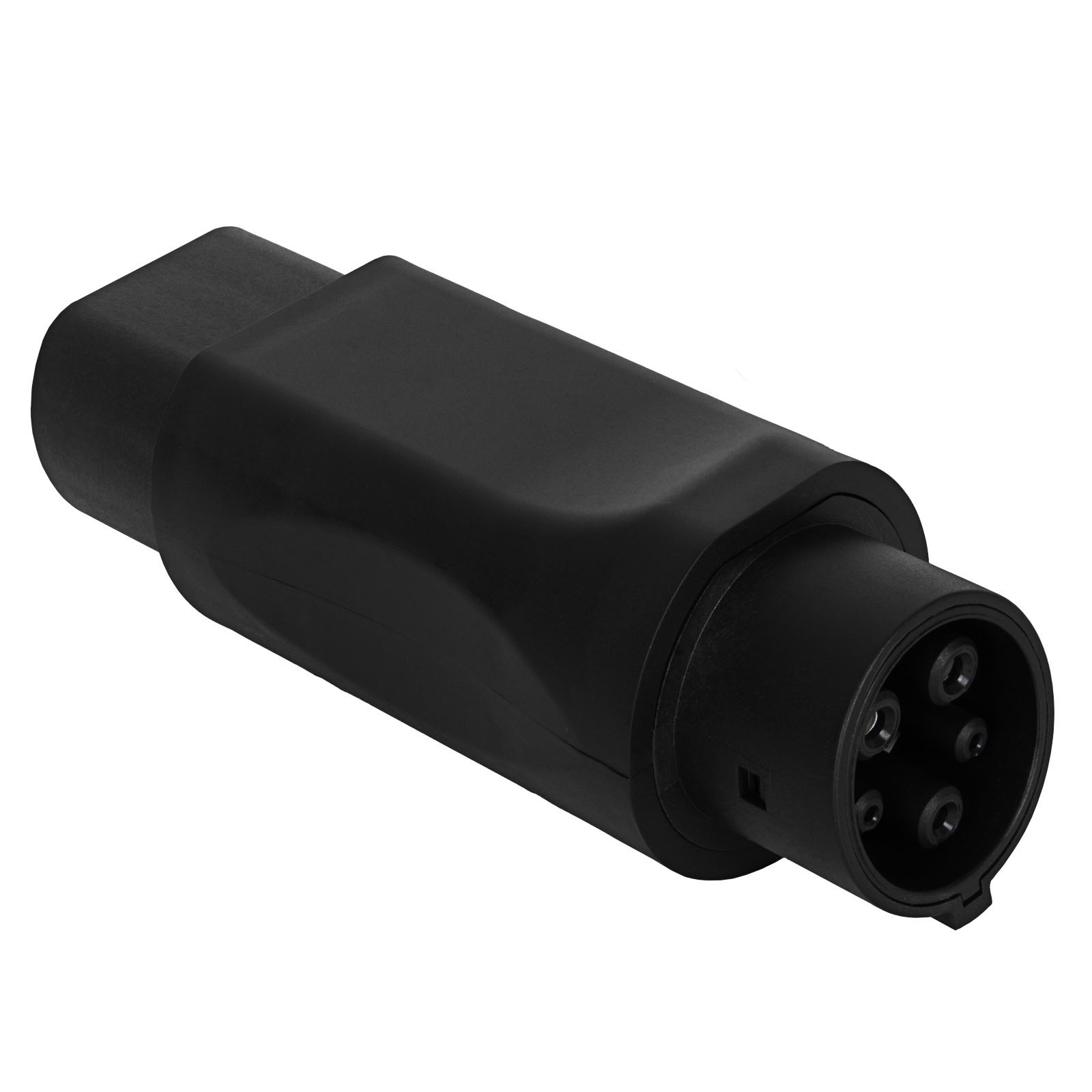

Adapter Type 2 / Type 1 male – female 32A AK-SC-E08

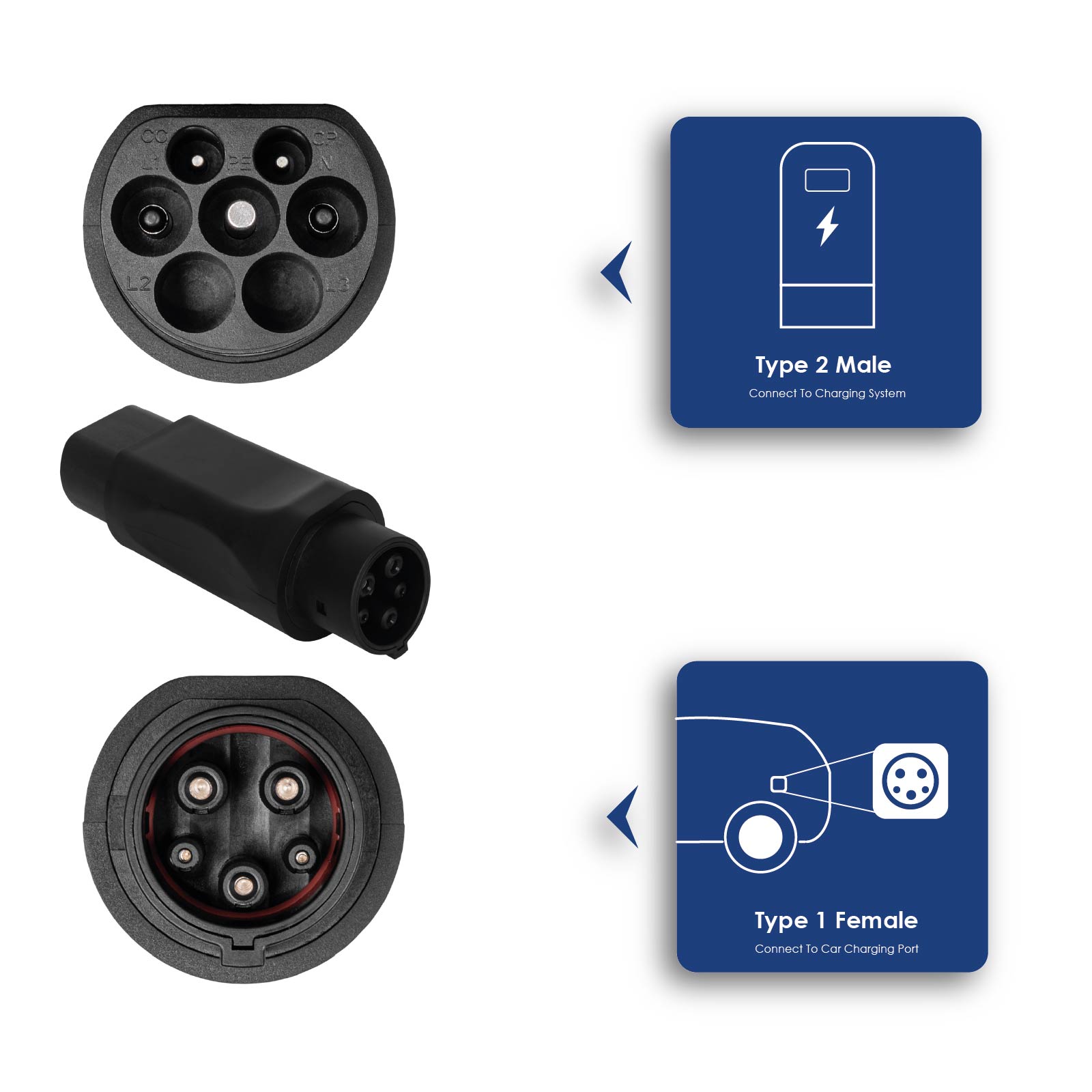

Adapter Akyga AK-SC-E08 is used for converting the connector Type 2 to Type 1. On one side of the adapter, there is a standard Type 2 socket. It fits most EV chargers found at public car charging stations in Europe.
On the other end, we can find a Type 1 plug. With its help, you can charge an electric car with a J1772 socket, which is found in older car models and those imported from overseas. Moreover, the adapter is made of high-quality materials that ensure its long lifespan and reliability.
Product features
| Product code | AK-SC-E08 |
| Responsible entity | Akyga Europe Sp. z o.o., 52-200 Suchy Dwór, Wrocławska 1c, Polska/Poland, [email protected] |
| Supply voltage | 250 V |
| Number of phases | 1 phase |
| Maximum current | 32 A |
| Maximum power | 8 kW |
| Fire resistance | UL94V-0 |
| Ingress protection class | IP55 |
| Plug #1 | Male connector Type 2 (IEC 62196-2) |
| Plug #2 | Female connector Type 1 (J1772) |
| Plated plugs | Silver |
| Material | TPE |
| Product color | Black |
| Operating temperature | -30 / +50 °C |
| Packaging | Carton |
| Product dimensions (L x W x H) | 59 x 61 x 163 mm |
| Packaging dimensions (L x W x H) | 72 x 72 x 180 mm |
| Net weight | 291 g |
| Gross weight | 334 g |
| CE compliance | Yes |
| RoHS compliance | Yes |
| REACH compliance | Yes |
| EAN code | 5901720137821 |
| Warranty | 24 months |
