AKYGA EVSE mobile charger Akyga 3kW (phases quantity 1) AK-EC-20 LCD
Index:
AK-EC-20
Rate this product first
1
pcs.
Last item
Color: Black/Blue
177.77 £
246.76
£
Lowest price in 30 days from the promotion is: 177.77 £
Specification
Kind:
EVSE mobile charger
Series:
Akyga
Model:
AK-EC-20 LCD
Power [kW]:
3
Phases quantity:
1
Output:
cable type 2
Number of outputs [pcs]:
1
Authorization:
No
OCPP support:
No
Input power:
BS 1363 (G)
Maximum amperage [A]:
13
Power adjustment:
Yes
Wires cross-section [mm²]:
2,5
Residual-current device:
No
Protection level:
IP54
Colour:
Black
Colour:
Blue
Height [mm]:
250
Width [mm]:
150
Bar code:
IC-H0FYJF, 5901720139467
Item code:
H0FYJF
Item index:
AK-EC-20
PCN:
85044060
Manufacturer:
Specification Tecdoc
Depth [mm]:
85
Electric car charger AK-EC-20
BS 1363 UK / Type2 LCD 1-phase 13A 3kW 5m
Innovative electric car charger UK!
Discover Akyga® AK-EC-20 – a charger designed with electric cars in the UK and Ireland in mind. Thanks to the BS 1363 (G) plug, the charger is fully compatible with local electrical systems. This device combines modern technologies and the highest safety standards, ensuring convenient and fast charging of your vehicle.
Intelligent ControlBox
The heart of the EV charger is an advanced ControlBox with an LCD display, which provides essential information about the charging process. The displayed data includes charging current, voltage, energy consumption, device temperature, and charging time. The ability to monitor these parameters in real-time allows for full control over the charging process, increasing the comfort and safety of using the charger.

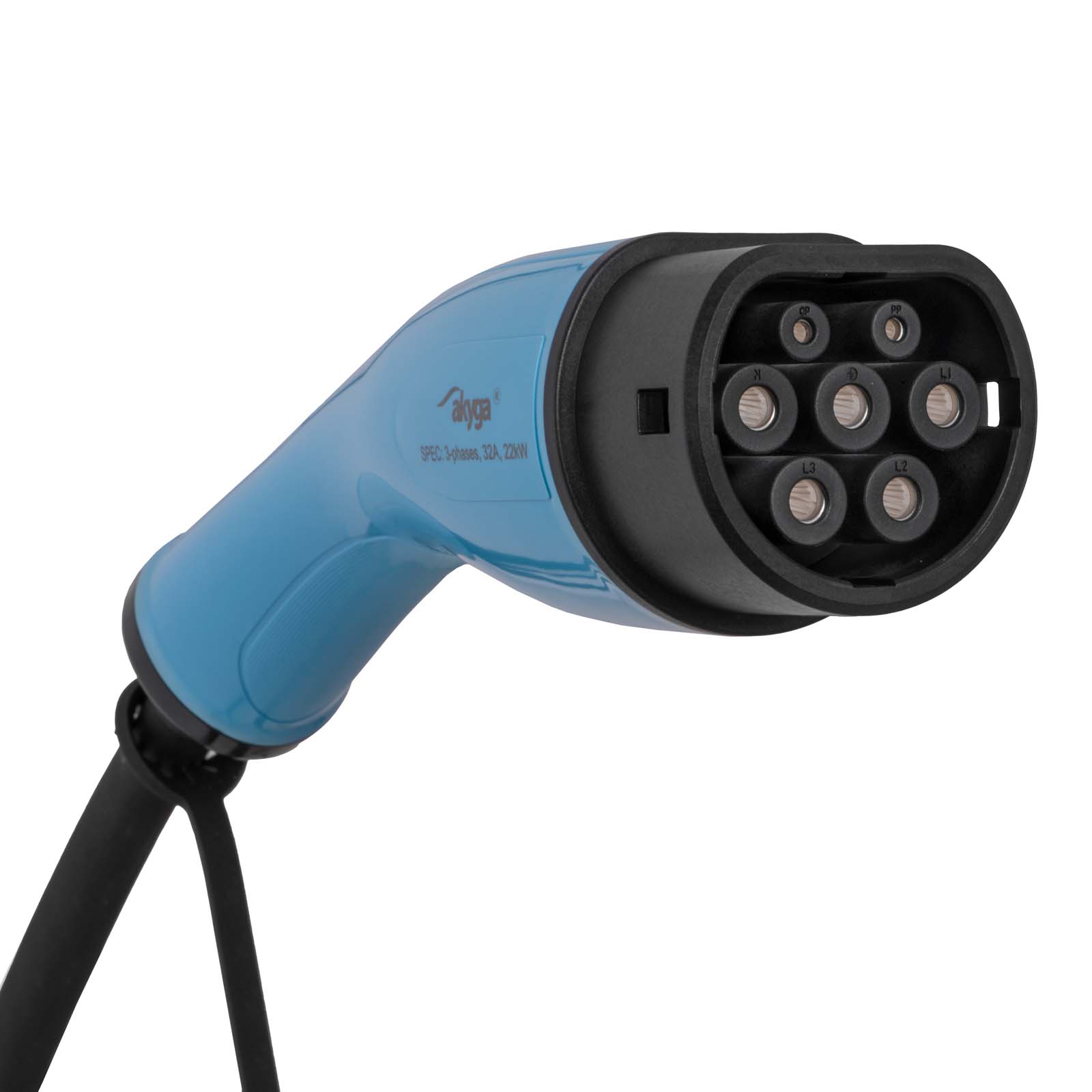

The AK-EC-20 charger is equipped with a Type 2 connector (IEC 62196-2), known as Mennekes – the most popular electric car charging standard in Europe. This ensures compatibility with almost every electric car on the market. A long, 5-meter cable provides convenience in connecting, regardless of the socket's installation location. Adjustable charging current, available in ranges of 8 A, 10 A, and 13 A, allows you to adjust the power to the specifications of the electrical installation and the requirements of your vehicle, offering efficient and safe charging.
Ensuring comfort and mobility, Akyga® AK-EC-20 comes with an elegant bag that facilitates its storage and transport. The bag is not only practical but also stylish, which will certainly be appreciated by users who pay attention to details. Thanks to this, the charger can be easily taken on a trip, ensuring access to charging wherever you are.
Product features
| Product code | AK-EC-20 |
| Responsible entity | Akyga Europe Sp. z o.o., 52-200 Suchy Dwór, Wrocławska 1c, Poland, [email protected] |
| Product type | Electric car accessory |
| Padlock eye | No |
| Supply voltage | 110-250 V / 50/60 Hz |
| Number of phases | 1 phase |
| Maximum current | 13 A |
| Maximum power | 3 kW |
| Grounding | Yes |
| Fire resistance | UL94V-0 |
| Ingress protection class | IP54 |
| OVP protection | Yes |
| OCP protection | Yes |
| OPP protection | Yes |
| OTP protection | Yes |
| SCP protection | Yes |
| Cable length | 5 m |
| Plug #1 | Type G |
| Plug #2 | Female connector Type 2 (IEC 62196-2) |
| Plated plugs | Silver |
| Cable material | Copper |
| Cable cross-section | 3 x 2.5 mm2 + 1 x 0.5 mm2 |
| Insulation material | TPE |
| Material of construction | ABS |
| Product color | Blue |
| Display | Yes |
| MTBF | 10000 h |
| Operating temperature | -30 / +50 °C |
| Packaging | EcoBox |
| Product dimensions (L x W x H) | 390 x 390 x 90 mm |
| Packaging dimensions (L x W x H) | 430 x 400 x 100 mm |
| Net weight | 1.82 kg |
| Gross weight | 2.4 kg |
| CE compliance | Yes |
| FCC compliance | Yes |
| RoHS compliance | Yes |
| REACH compliance | Yes |
| Included equipment | Protective bag |
| EAN code | 5901720139467 |
| Warranty | 24 months |
